Binary™ 4K Media over IP receiver audio downmixing
Regular price
€1.415,00
Regular price
€1.415,00
Sale price
€1.415,00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Regular price
€1.415,00
Regular price
€1.415,00
Sale price
€1.415,00

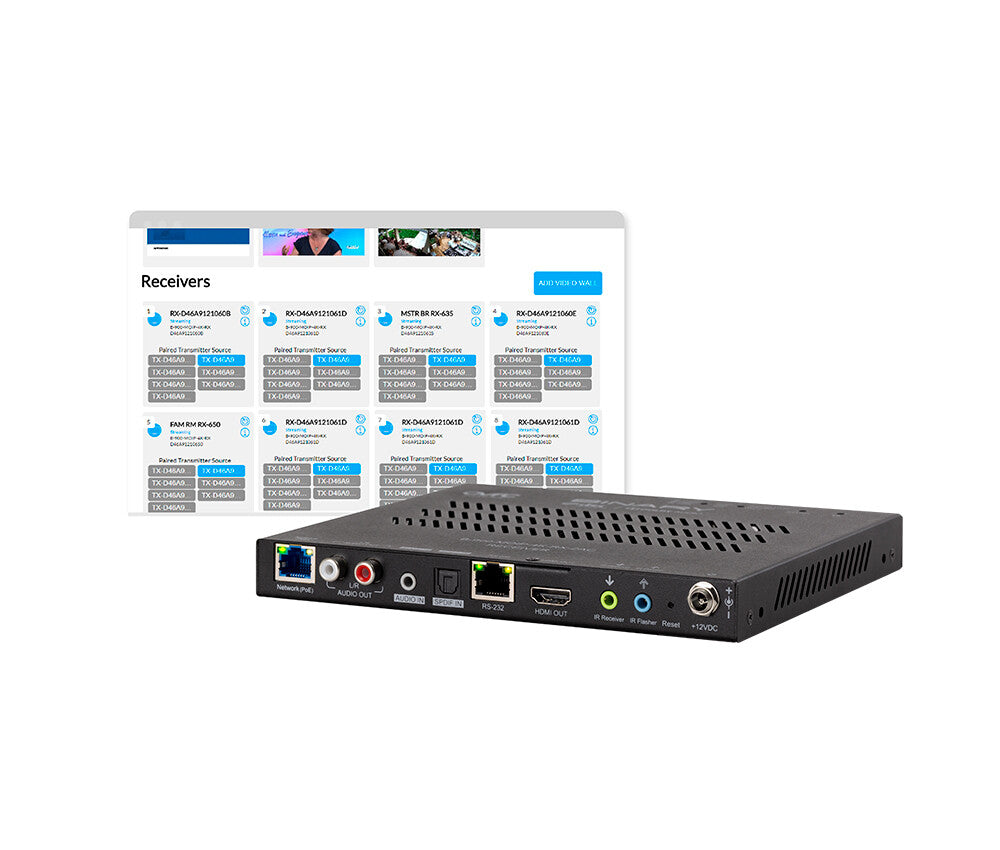

The Binary™ 4K Media over IP Receiver Audio Downmixing, together with the MoIP transmitter and a MoIP controller , forms a highly scalable, flexible IP media distribution system that delivers visually lossless 4K HDR video (HDR 30Hz and HDCP 2.2 compatible) and all Multi-channel formats including Dolby Atmos and DTS-X.
The Binary™ 4K Media over IP Receiver Audio Downmixing, together with the MoIP transmitter and a MoIP controller , forms a highly scalable, flexible IP media distribution system that delivers visually lossless 4K HDR video (HDR 30Hz and HDCP 2.2 compatible) and all Multi-channel formats including Dolby Atmos and DTS-X. Running on a low-cost Gigabit Layer 2 PoE switch, this setup is the fastest and easiest available. Additionally, OvrC remote management enables quick system setup, easy troubleshooting with access to live screenshots of the source stream, and quick, easy firmware updates. MoIP receivers also include a built-in video scaler, allowing for simultaneous distribution of 4K source content to 4K and 1080p displays, as well as audio breakout. Finally, RS-232, IR, and custom drivers for common control systems provide tremendous system design flexibility.
- Visually lossless decoding up to 4K HDR
- Scaling to support 1080p.
- 2CH Audio De-embedding
- Quick setup
- OvrC-enabled remote management
Visually lossless 4K video
MoIP encodes video up to 4K HDR using visually lossless variable bitrate compression technology. The system is compatible with HDR and HDCP 2.2, resulting in an ultra-stable video stream, perfect audio/video synchronization and extremely low latency (one frame).
4K Media over IP receiver mixed 4K and 1080p sources and displays
Traditional matrix switches force you to downgrade all source content to the lowest video quality that works on all screens. Whether your customer is moving to a full 4K system now or upgrading from 1080p to 4K over time, MoIP offers the tailored solution to fit their budget without sacrificing quality.
Unlimited control options

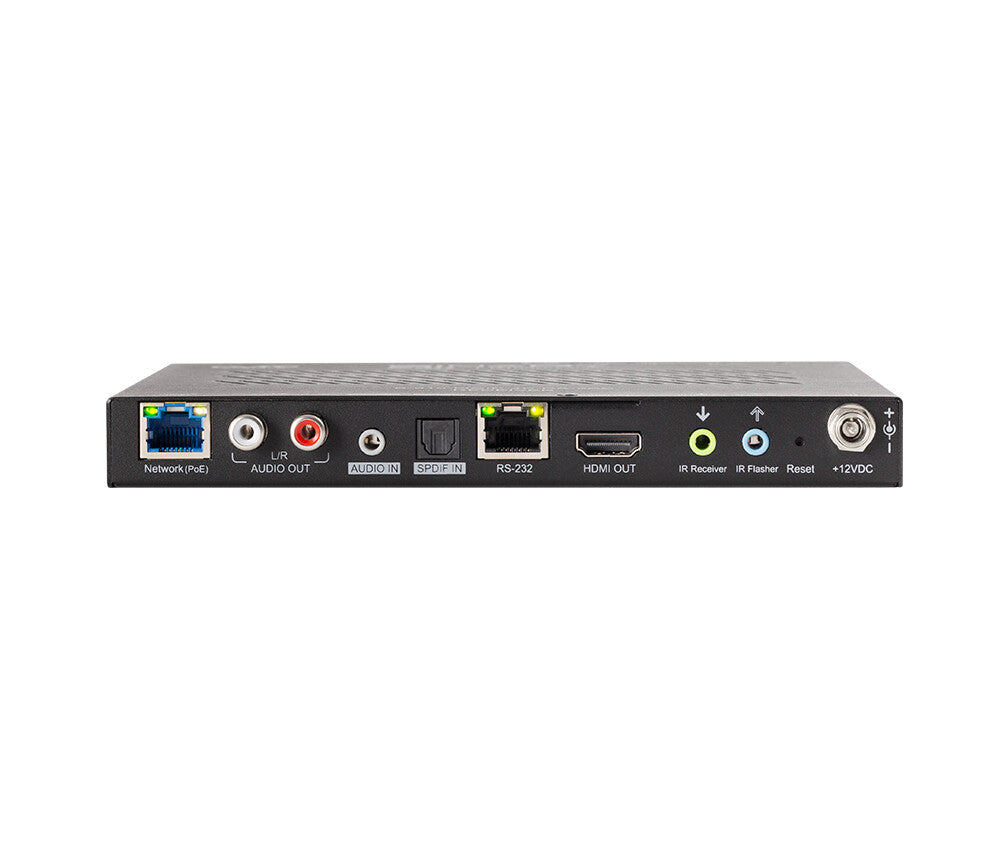

Switching from inputs (TX) to outputs (RX) is done by IP commands from a control system that are sent to the MoIP controller. The system supports three methods of controlling sources and displays as standard: IR, RS-232 and CEC. IR or RS-232 commands can be issued over IP and generated at any endpoint. If desired, virtual IR and RS-232 routing can also be configured from any TX to any or all RX(s). Desired methods for issuing commands can be selected via the local user interface. Finally, MoIP also supports CEC for simpler installations where only display and standby are required.
4K Media over IP receiver with integration of control systems
Our engineers have written drivers for the industry's leading control systems such as Control4, Crestron, ELAN, URC and more - so controlling the system has a familiar feel. Advanced features like IR routing and RS-232 over IP offer even more flexibility and customization - and we've even provided the MoIP controller API to create your own drivers if necessary.
Binary™ 4K Media over IP receiver audio downmixing with advanced audio features
Dolby and DTS audio downmixing
The Binary™ 4K Media over IP Receiver with Downmixing allows multi-channel audio to be downmixed to 2-channel audio, eliminating the need to select multi-channel or force downmixing, and provides immersive multi-channel audio in one area while in the throughout the room in 2-channel audio format.
Supported audio formats

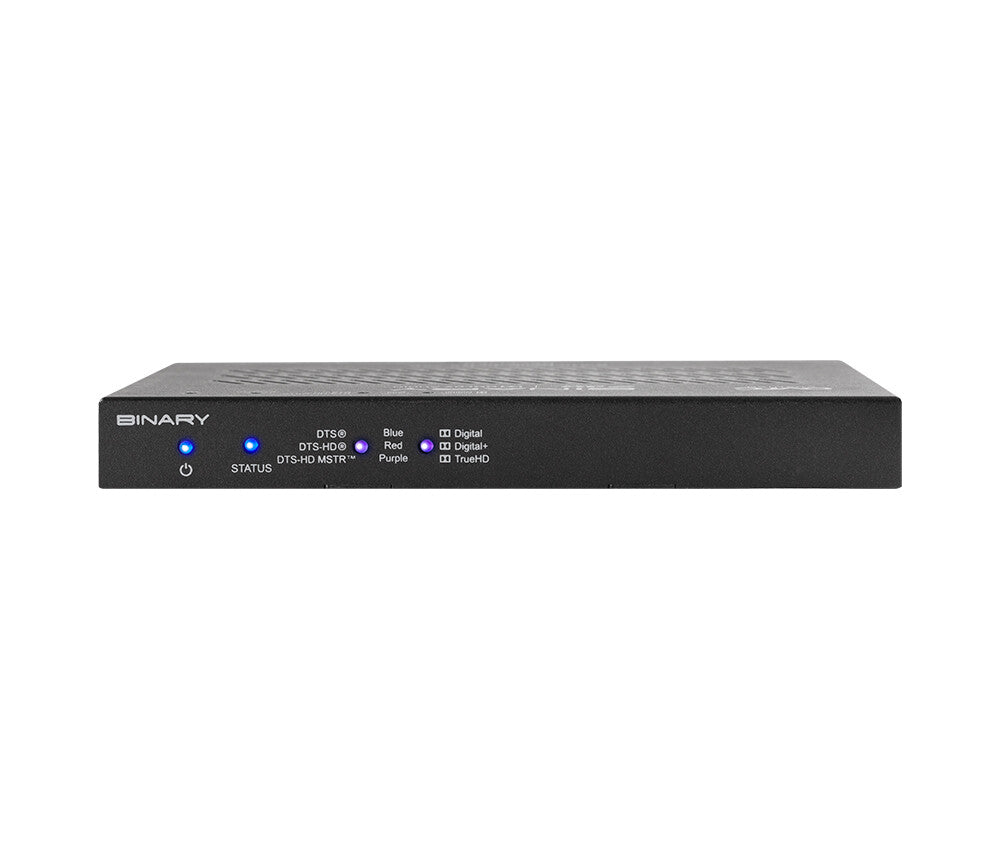

The Binary™ 900 Series 4K Media over IP transmitters and receivers support Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS, DTS-HD and DTS-HD Master Downmixing for ultimate flexibility in integrating video and audio .
Audio lip sync setting
The Binary™ 4K Media over IP Receiver Audio Downmixing supports lip sync for analog output from 0ms to 250ms for perfect audio/video synchronization.
HDMI audio API control
The Binary™ 4K Media over IP Receiver Audio Downmixing enables audio downmixing from multi-channel to 2-channel and multi-channel to HDMI output, where the HDMI downmix can be controlled via an API with three options: bypass, 2-channel mode and Auto mode for complete audio flexibility.
The Binary MoIP Difference
The Fastest, Simplest Solution
Gone are the days of headache-inducing system design, high-level networking expertise, and confusing configurations. Binary MoIP removes all of this complexity and requires only a Layer 2 PoE switch, so you don't need a network guru to install it. OvrC activation, easy setup, and intuitive interfaces allow you to go from power-on to picture in 5 minutes or less.
Flexible & scalable
The Binary MoIP solution allows you to customize, scale and upgrade the solution to your customer's specific needs. Need a 6×8 for one job and a 7×13 for another? That's no problem. How about adding a video wall? Completed. Instead of replacing the entire system, you can simply purchase new transmitters or receivers as you add sources or displays.
Ultra-reliable HDR
Binary MoIP eliminates legacy EMI interference and HDCP/EDID issues. Each source is encoded visually losslessly with the highest possible quality (e.g. 4K HDR). The signal is then decoded from the network on each display and scaled to the desired resolution (e.g. 1080p or 4K HDR). Built-in scaling in the RX means mixed 1080p/4K systems are no longer a problem, plus pass-through of all audio formats such as Dolby Atmos and DTS:X is fully supported.
The power of OvrC
Binary MoIP offers something no other media product can – award-winning remote management. OvrC speeds initial setup by automatically detecting the controller and provides unparalleled troubleshooting tools such as real-time video screenshots
Standalone app
Thanks to our standalone app embedded in the controller firmware, the MoIP system can be operated outside of a traditional control system. Follow the simple installation steps to give access to switching sources and displays, turning off displays, and saving scenes (e.g. "Game Night") for easy recall.
Technical data Binary™ 4K Media over IP receiver audio downmixing
