Yamaha XDA-AMP5400RK multiroom amplifier
€1.499,00
€1.499,00 €1.499,00
Tax included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Visa

GPSR Information

Manufacturer Information

Name: Yamaha Music Europe GmbH

Address: Siemensstraße 22-34 / 25462 Rellingen / Deutschland

Email: info@yamaha.de

Website: https://de.yamaha.com/

European Manufacturer: Yes
Yamaha XDA-AMP5400RK Multiroom-Verstärker (8527747907932)
€1.499,00
€1.499,00 €1.499,00

The “AMP” was specifically designed to customize entire home audio systems and is the partner amplifier of the Yamaha XDA-QS5400RK. Thus, it can increase the volume of speakers and/or the maximum output power. It can also be used to drive the speakers of a secondary zone on Yamaha AV receivers with zone pre outs.

Specifically designed to customize entire home audio systems, the Yamaha XDA-AMP5400RK is the partner amplifier to the Yamaha XDA-QS5400RK. Thus, it can increase the volume of speakers and/or the maximum output power. It can also be used to drive the speakers of a secondary zone on Yamaha AV receivers with zone pre outs.

  • Works with Yamaha XDA-QS5400RK to add additional speakers in customized multiroom audio systems
  • Eight channels of audiophile Class D amplification can be assigned to any zone. They can also be bridged, are 4 ohm compatible and have a hum-free design thanks to the ground connection.
  • Four audio paths and jumpers allow a variety of different speaker configurations
  • Connects the on/off switch to XDA-QS5400RK via trigger connectors
  • Inputs that automatically detect incoming signals, IR ports, and more make integration easy
  • 19-inch, 1U chassis; Removable rack wings and front panel included

The XDA-AMP5400RK - the "AMP" - was designed as a counterpart to the Yamaha XDA-QS5400RK to provide additional speaker connections in an integrated multi-room audio system. It is also a perfect match for Yamaha AV receivers that have zone pre outputs.

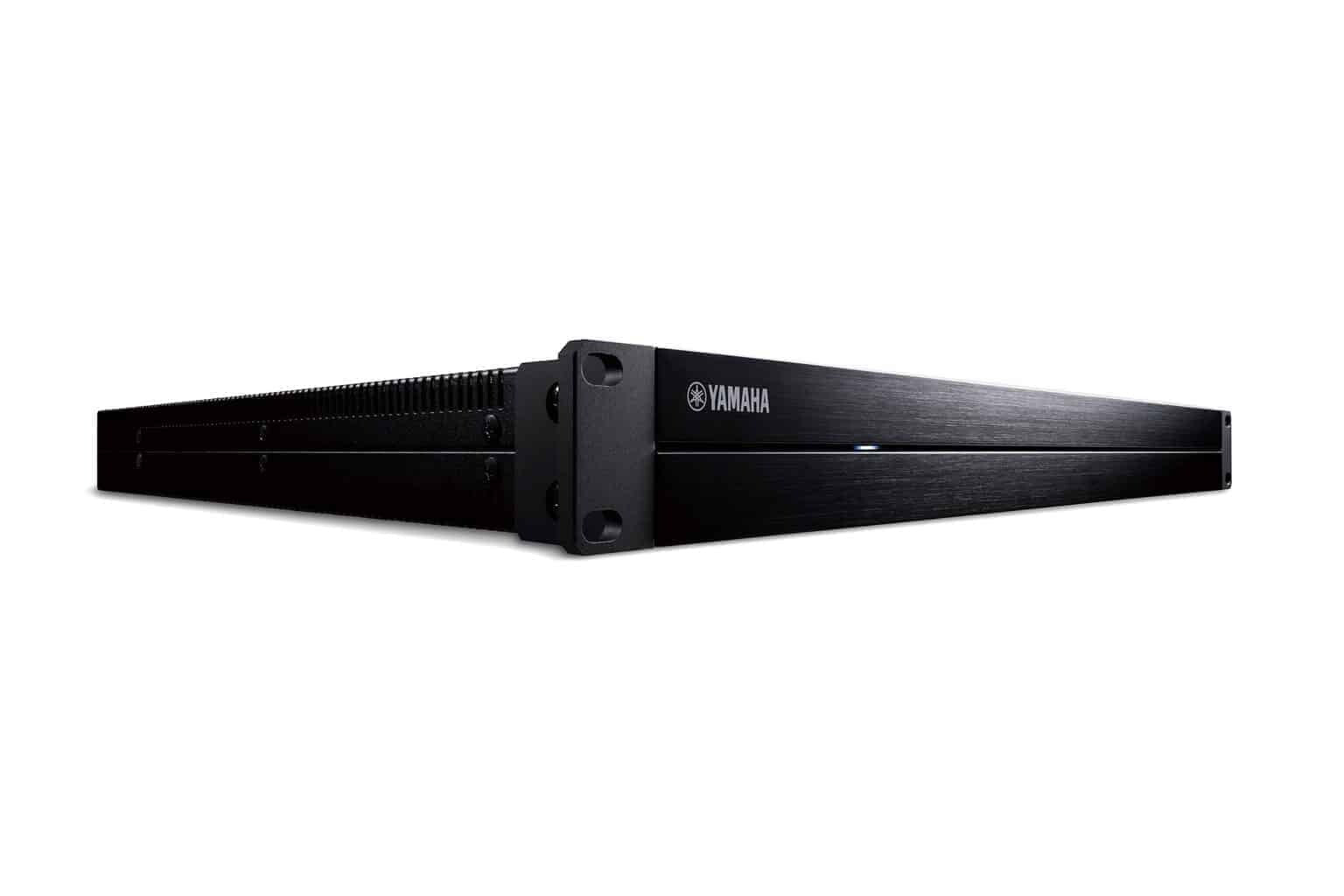

Yamaha XDA-AMP5400RK Slim and powerful

The AMP combines eight channels of audiophile amplification in a strikingly flat housing of just 1 height unit. This allows you to make optimal use of the space in your rack.

Yamaha XDA-AMP5400RK multiroom amplifier

Incredibly versatile

Connect up to four sources from the QS Pre-Outs to the AMP - its four audio paths can be patched together to form a wide range of speaker/zone configurations. The AMP features a variety of jumpers and cables that make it extremely versatile out of the box. Alternatively, the audio outputs can also be used to connect active subwoofers or subwoofer power amplifiers.

Yamaha XDA-AMP5400RK multiroom amplifier

Yamaha XDA-AMP5400RK - More power on demand

Each of the four amplifier zones can be bridged so that the power output for specific speakers can be increased.

The XDA-AMP5400RK uses highly efficient ICEpower circuitry to provide eight channels of finest, dynamic digital amplification at 50 watts per channel (8 ohms). It achieves a frequency response of 5 Hz to 40 kHz (+0/-3 dB) and a signal-to-noise ratio of 108 dB. It delivers 100 watts per channel at 4 ohms and can be bridged to 8 ohms for 200 watts per channel.

The curse of custom-made products: the ground loop, a common problem when connecting many electronic devices in a rack. The QS addresses the problem with a brilliantly designed differential circuit. Sometimes what you don't hear sounds best.

The XDA-AMP5400RK uses balanced audio circuitry and PML capacitors, as used in our flagship AVENTAGE series AV components. The result is a more realistic, expressive reproduction of your favorite music.

The included rack wings enable installation in a rack, but can also be removed for shelf use. The magnetic front panel, which is also included, prevents unauthorized access and forms the perfect visual finish.

When a QS and an AMP are shared, you can simply connect the corresponding trigger connections to automatically turn the amp zones on and off - no additional control device is necessary. The AMP also works perfectly in harmony with AVENTAGE AV receivers. When using the AMP with other sources, signal sensors and infrared I/Os provide additional control flexibility.

The AMP was developed with individual integration in mind. It offers Euroblock-style speaker connections and a detachable power cable.
