KRIX MX-30 basic module
This product is only available on request and is intended for projects! Please use our contact form if you are interested in this product.
- Project-based product!
- Do you have any questions? We are happy to help! 0421 - 380 396 30
- specialist shop with showrooms in Bremen
- planning office in Seevetal near Hamburg
- over 10,000 satisfied customers
Regular price
€0,00
Regular price
€0,00
Sale price
€0,00

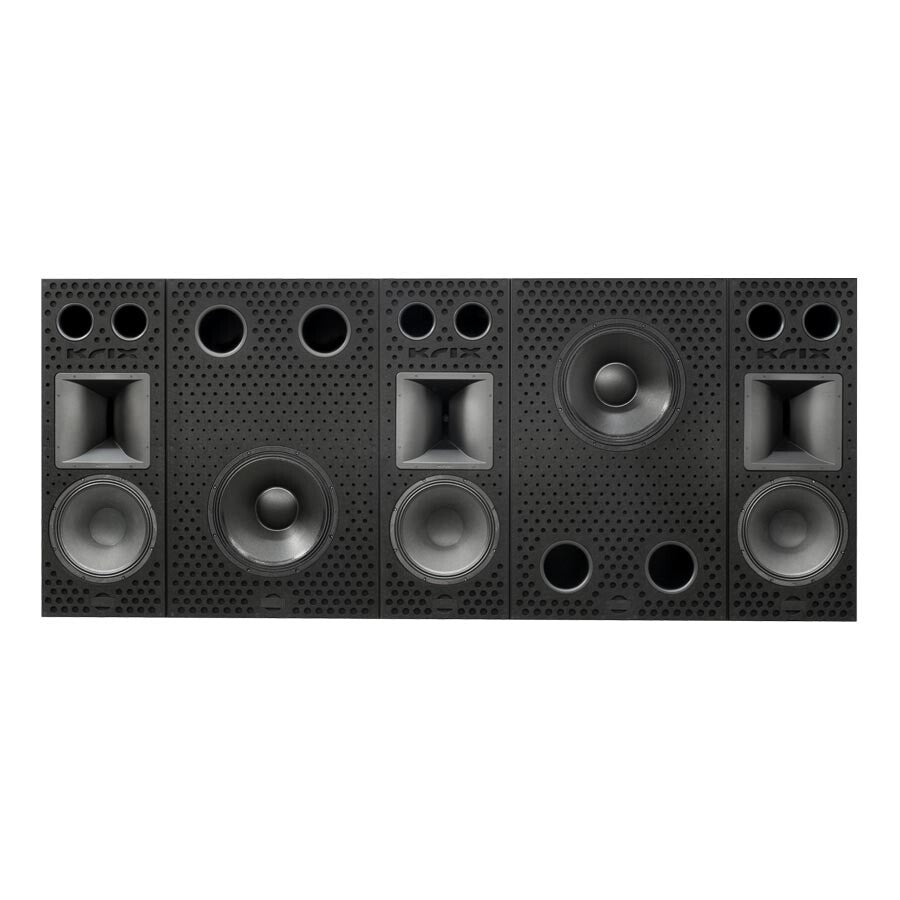

KRIX MX-30 basic module
Designed for larger, dedicated home theaters with an acoustically transparent screen, the KRIX MX-30 base module reproduces your favorite movie soundtracks with the highest definition and accuracy - directly across the picture and in your seat. Larger bass drivers and compression tweeters provide an extended frequency response at higher sound pressure levels.
Professional home cinema construction with Krix MX-30 front
The KRIX MX-30 base module delivers clear, realistic sound with impressive power and precision. It is equipped with commercial cinema components and designed for larger home theaters ranging from 5 to 14 meters in length.
It consists of five modules, all of the same height and slim depth for easy installation in voids. Each module has a front baffle with acoustic absorption material that absorbs sound from the back of the screen or the room itself. This improves the acoustic treatment of the room, increasing sound quality and intelligibility.
Processing of the loudspeaker system
Main speakers use a single 380mm high-rigidity paper cone woofer with a 77mm voice coil for greater excursion. The vented magnet assembly minimizes distortion and enables impressive clarity. The patented Krix horn with 90 x 40 degree dispersion handles high frequencies and is powered by a high-frequency compression driver with a 44mm voice coil.
Each subwoofer contains a massive 455mm driver with a 100mm voice coil, dual spider and illuminated magnet array. This ensures powerful bass reproduction and impressive crescendo. The KRIX MX-30 base module reproduces films authentically so you can really feel the action on the screen.
Experience the ultimate cinema experience at home!
Advantages of the Krix MX-30
- The Krix MX-30 offers excellent sound quality with clear highs, detailed mids and powerful bass.
- It creates a cinema-like experience with immersive surround sound.
- The speakers are of high quality and durable.
- They offer flexible placement options on the wall and can be hidden completely invisibly behind an acoustically transparent screen
- Krix MX-30 is versatile and compatible with AV receivers and amplifiers.
- The Krix brand enjoys an excellent reputation in the audio world.
- The system is ideal for home theater enthusiasts looking for an immersive audio experience.
- It can be seamlessly expanded with other Krix speakers to enhance the home theater experience.
Specifications
| LCR loudspeaker modules | |
| Frequency range | 38Hz-16kHz in surround sound |
| Resilience | 100 - 700 Watt RMS recommended amplifier power |
| sensitivity | 98dB for 2.83 volts at 1 meter distance |
| Impedance | 8 ohms |
| configuration | 2-way |
| Housing type | Bass reflex, front ventilated |
| Bass driver | Single 380mm high-rigidity paper cone driver with 77mm voice coil with optimum length for increased linear excursion, wound on a high-temperature tip carrier and a powerful vented magnet assembly designed for low distortion |
| High frequency driver | A Krix patented 90º x 40º short-throw horn driven by a compression driver with a 1″ laryngeal 1¾" aluminum voice coil and Nomex former |
| Input terminals | Gold-plated spring terminals |

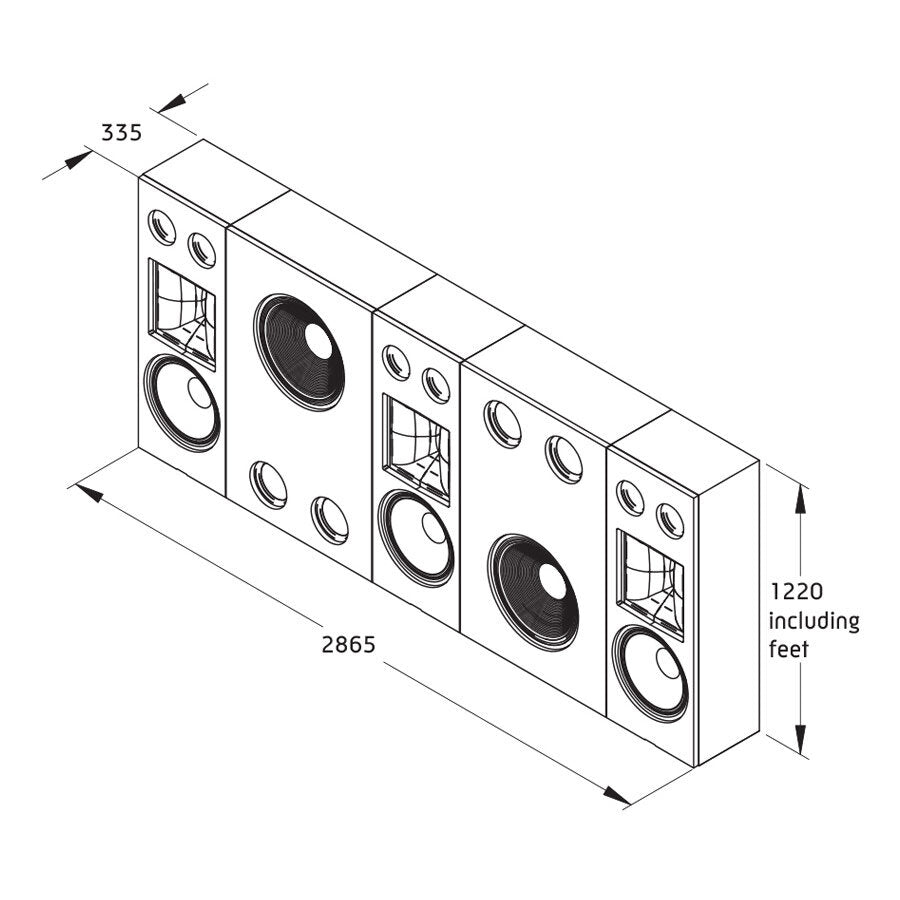

| Dimensions | 1220 mm high x 450 mm wide x 335 mm deep (2865 mm wide including subwoofer module) |
| Subwoofer module | |
| Frequency range | 25Hz-500Hz in surround sound |
| Resilience | 200 - 1400 Watt RMS recommended amplifier power |
| sensitivity | 100 dB for 2.83 volts at 1 meter distance |
| Impedance | 8 ohms |
| Housing type | Bass reflex, downward valve |
| Bass driver | Single 455 mm (18") paper cone driver. 100 mm (4") edge wound copper voice coil with double spider and illuminated magnet |
| Input terminals | High-quality gold-plated spring terminals |
| Dimensions | 1220 mm high x 750 mm wide x 335 mm deep (2865 mm wide including LCR module) |
| System recommendations | |
| Minimum screen size 16:9 | 130″ (2880mm x 1620mm) |
| Minimum screen size 21:9 | 120″ (2806mm x 1184mm) |
| Recommended room depth | 5m - 14m |
